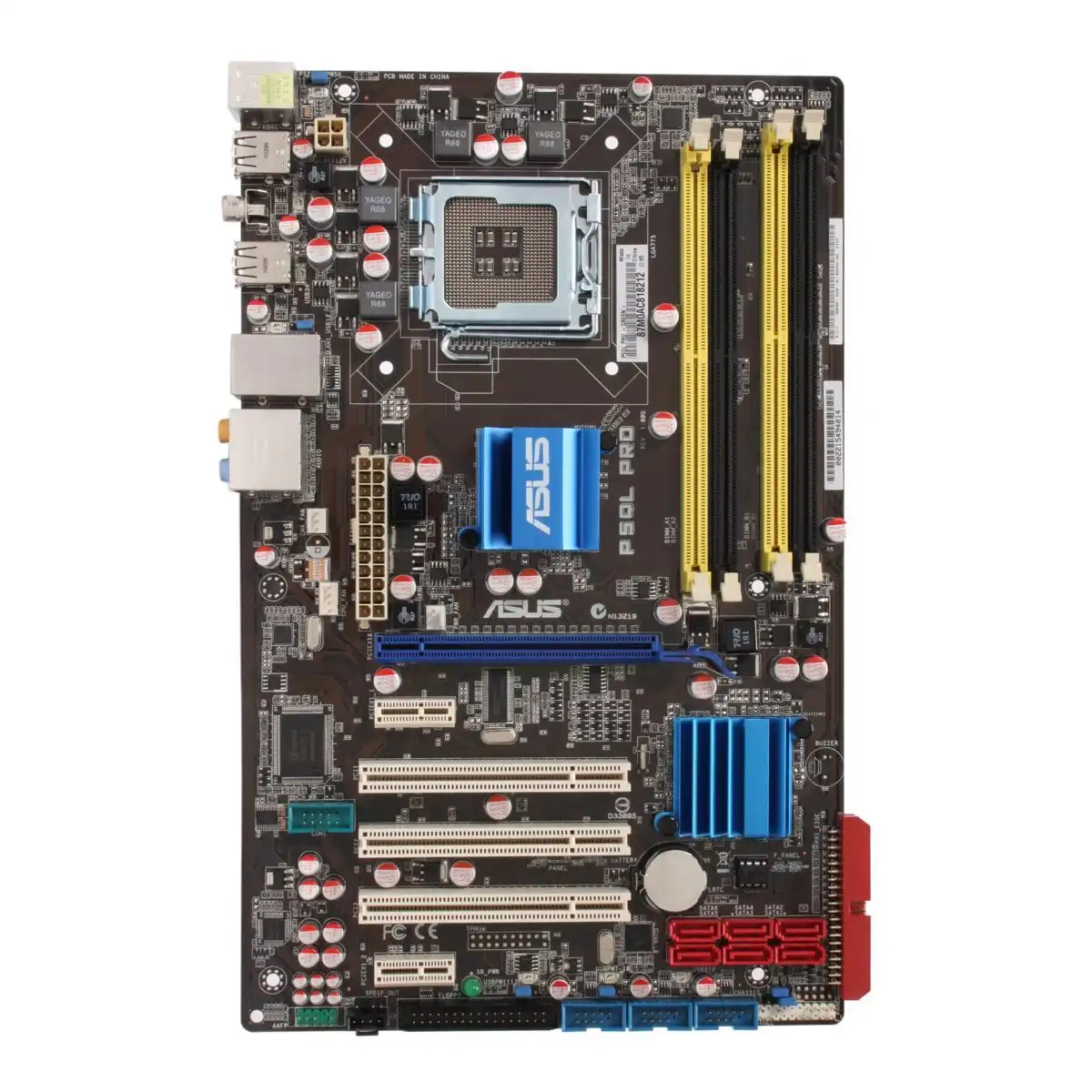

مادربورد ایسوس مدل ASUS P5QL PRO LGA 775 Motherboard

Name: مادربورد ایسوس مدل ASUS P5QL PRO LGA 775 Motherboard
SKU: 15138
Price: 8000000 IRR
Availability: OutOfStock

دسته: مادربورد

تحویل همین امروز برای شهر تهران

پرداخت در محل در تمام کشور

ناموجود

ارسال توسط فروشگاه آنلاین فلش سیستم

ناموجود

گارانتی	1 هفته تضمین سلامت و کارکرد فلش سیستم (کارکرده، سالم و تست شده) پاک کردن

- +

توضیحات

مادربورد ایسوس مدل ASUS P5QL PRO LGA 775 Motherboard دارای سوکت LGA 775 و سازگار با پردازنده های اعلام شده در لیست پایین است.

این مادربورد دارای 4 درگاه برای اتصال رم از نوع DDR2 با فرکانسهای 1066/800/6672133 مگاهرتز می باشد و حداکثر از 16 گیگابایت حافظه رم پشتیبانی می کند.

اسلات های توسعه شامل یک PCI Express x16، دو PCI Express x1 و سه PCI می باشد.

پورتهای ساتا برای اتصال هارد شامل 6 عدد می باشد.

پورتهای یو اس بی در پنل پشتی شامل 6 عدد USB 2.0 است.

مشخصات مادربورد ASUS P5QL PROلیست CPU های پشتیبانی کنندهدانلود درایورها

Form factor:	ATX 12″ x 7.6″ / 30.5 cm x 19.3 cm
CPU socket type:	Socket 775
Chipset:	Intel P43 Express
Motherboard features:	AI Nap CrashFree BIOS 3 Crystal Sound EZ DIY EZ Flash 2 Express Gate Fan Xpert MyLogo 2 Noise Filter O.C. Profile Q-Connector Q-Connector Quiet Thermal Solution
Overclocking features:	CPU Parameter Recall Stepless Frequency Selection
Memory:	4 DIMMs 16 GB DDR2 1066/800/667 Dual-channel
Audio:	8-channel HD audio Realtek ALC1200 Audio codec
BIOS:	AMI BIOS 8 MB Flash
Expansion slots:	PCI x 3 PCIe 2.0 x16 x 1 PCIe x1 x 2
Internal connectors:	ATX Power (24-pin) x 1 CD audio in x 1 CPU Fan x 1 Chassis Fan x 1 Chassis Intrusion x 1 FDD x 1 Front panel audio x 1 IDE x 1 Power Fan x 1 SATA x 6 Serial x 1
Rear panel ports:	8-channel Audio LAN RJ45 x 1 PS/2 Keyboard x 1 PS/2 Mouse x 1 S/PDIF Out (Coaxial) x 1 USB 2.0/1.1 x 6
Included accessories:	2 in 1 Q-connector x 1 2-port SATA power cable(s) x 1 FDD cable(s) x 1 I/O Shield x 1 SATA cable(s) x 2 UltraDMA 133/100/66 cable(s) x 1 User manual x 1

Celeron 420(1.60GHz,800 FSB,L2 512KB,LGA775,revA1)	ALL	0304 GO
Celeron 430(1.80GHz,800 FSB,L2 512KB,LGA775,revA1)	ALL	0304 GO
Celeron 450(2.2GHz,800 FSB,L2 512KB,LGA775,revA1)	ALL	0410 GO
Celeron Dual Core E1200(revM0,1.6GHz,800 FSB,L2:512K)	ALL	0304 GO
Celeron Dual Core E1400 (revM0,2.0GHz, 800 FSB, L2: 512K)	ALL	0304 GO
Celeron Dual Core E3200(revR0,2.4GHz,800 FSB,L2: 1M)	1.00G	1004 GO
Celeron Dual Core E3300(revR0,2.5GHz,800 FSB,L2: 1M)	ALL	1004 GO
Core 2 Duo E4300 (1.8GHz,800FSB,L2:2MB,65W,rev.L2)	ALL	0304 GO
Core 2 Duo E4400 (2.0GHz,800FSB,L2:2MB,65W,rev.L2)	ALL	0304 GO
Core 2 Duo E4400 (2.0GHz,800FSB,L2:2MB,65W,rev.M0)	ALL	0304 GO
Core 2 Duo E4500 (2.2GHz,800FSB,L2:2MB,65W,rev.M0)	ALL	0304 GO
Core 2 Duo E4600 (2.4GHz,800FSB,L2:2MB,65W,rev.M0)	ALL	0304 GO
Core 2 Duo E4700 (2.6GHz,800FSB,L2:2MB,revG0)	ALL	0304 GO
Core 2 Duo E6300 (1.86GHz,1066FSB,L2:2MB,rev.B2)	ALL	0304 GO
Core 2 Duo E6300 (1.86GHz,1066FSB,L2:2MB,rev.L2)	ALL	0304 GO
Core 2 Duo E6320 (1.86GHz,1066FSB,L2:4MB,rev.B2)	ALL	0304 GO
Core 2 Duo E6400 (2.13GHz,1066FSB,L2:2MB,rev.B2)	ALL	0304 GO
Core 2 Duo E6420 (2.13GHz,1066FSB,L2:4MB,rev.B2)	ALL	0304 GO
Core 2 Duo E6540 (2.33GHz,1333FSB,L2:4MB,rev.G0)	ALL	0304 GO
Core 2 Duo E6550 (2.33GHz,1333FSB,L2:4MB,rev.G0)	ALL	0304 GO
Core 2 Duo E6600 (2.40GHz,1066FSB,L2:4MB,rev.B2)	ALL	0304 GO
Core 2 Duo E6700 (2.66GHz,1066FSB,L2:4MB,rev.B2)	ALL	0304 GO
Core 2 Duo E6750 (2.66GHz,1333FSB,L2:4MB,rev.G0)	ALL	0304 GO
Core 2 Duo E6850 (3.00GHz,1333FSB,L2:4MB,rev.G0)	ALL	0304 GO
Core 2 Duo E7200(2.53GHz,1066FSB,L2:3MB,rev.M0)	ALL	0304 GO
Core 2 Duo E7300(2.66GHz,1066FSB,L2:3MB,rev.M0)	ALL	0304 GO
Core 2 Duo E7400(2.80GHz,1066FSB,L2:3MB,rev.R0)	ALL	0902 GO
Core 2 Duo E7500(2.93GHz,1066FSB,L2:3MB,rev.R0)	ALL	0902 GO
Core 2 Duo E7600(3.06GHz,1066FSB,L2:3MB,rev.R0)	ALL	1001 GO
Core 2 Duo E8190(2.66GHz,1333FSB,L2:6MB,rev.C0)	ALL	0304 GO
Core 2 Duo E8200 (2.66GHz,1333FSB,L2:6MB,rev.C0)	ALL	0304 GO
Core 2 Duo E8300 (2.83GHz,1333FSB,L2:6MB,rev.C0)	ALL	0304 GO
Core 2 Duo E8400 (3.00GHz,1333FSB,L2:6MB,65W,rev.E0)	ALL	0408 GO
Core 2 Duo E8400 (3.00GHz,1333FSB,L2:6MB,rev.C0)	ALL	0304 GO
Core 2 Duo E8500 (3.16GHz,1333FSB,L2:6MB,65W,rev.E0)	ALL	0408 GO
Core 2 Duo E8500 (3.16GHz,1333FSB,L2:6MB,rev.C0)	ALL	0304 GO
Core 2 Duo E8600 (3.33GHz,1333FSB,L2:6MB,65W,rev.E0)	ALL	0408 GO
Core 2 Extreme QX6700(revB3,2.66GHz,1066FSB,L2:2X4MB)	ALL	0304 GO
Core 2 Extreme QX6800(revB3,2.93GHz,1066FSB,L2:2X4MB)	ALL	0304 GO
Core 2 Extreme QX6850(revG0,3.00GHz,1333FSB,L2:2X4MB)	ALL	0304 GO
Core 2 Extreme QX9650(revC0,3.00GHz,1333FSB,L2:2X6MB)	ALL	0304 GO
Core 2 Extreme QX9770(revC1,3.2GHz,1600FSB,L2:2X6MB)	ALL	0304 GO
Core 2 Extreme X6800(2.93GHz,1066FSB,L2:4MB,revB2)	ALL	0304 GO
Core 2 Quad Q6600 (2.40GHz,1066FSB,L2:2X4MB,rev.B3,4 cores)	ALL	0304 GO
Core 2 Quad Q6600 (2.40GHz,1066FSB,L2:2X4MB,rev.G0,4 cores)	ALL	0304 GO
Core 2 Quad Q6700 (2.66GHz,1066FSB,L2:2X4MB,rev.G0,4 cores)	ALL	0304 GO
Core 2 Quad Q8200 (rev.M1,2.33GHz,1333FSB,L2:4MB,4 cores)	ALL	0410 GO
Core 2 Quad Q8200 (rev.R0,2.33GHz,1333FSB,L2:4MB,4 cores)	ALL	1001 GO
Core 2 Quad Q8200S (rev.R0,2.33GHz,1333FSB,L2:4MB,4 cores)	ALL	0902 GO
Core 2 Quad Q8300 (rev.R0,2.50GHz,1333FSB,L2:4MB,4 cores)	ALL	0902 GO
Core 2 Quad Q8400 (rev.R0,2.66GHz,1333FSB,L2:4MB,4 cores)	ALL	1001 GO
Core 2 Quad Q8400S (rev.R0,2.66GHz,1333FSB,L2:4MB,4 cores)	ALL	1001 GO
Core 2 Quad Q9300 (2.5GHz,1333FSB,L2:6MB,rev.M1,4 cores)	ALL	0304 GO
Core 2 Quad Q9400 (rev.R0,2.66GHz,1333FSB,L2:6MB)	ALL	0410 GO
Core 2 Quad Q9400S (rev.R0,2.66GHz,1333FSB,L2:6MB)	ALL	0904 GO
Core 2 Quad Q9500 (2.83GHz,1333FSB,L2:6MB,rev.R0)	ALL(???GX???)	0807 GO
Core 2 Quad Q9505(rev.R0,2.83GHz,1333FSB,L2:6MB)	1.00G	1004 GO
Core 2 Quad Q9550(2.83GHz,1333FSB,L2:12MB,rev.C1)	ALL	0304 GO
Core 2 Quad Q9550(rev.E0,2.83GHz,1333FSB,L2:12MB)	ALL	0410 GO
Core 2 Quad Q9550S(rev.E0,2.83GHz,1333FSB,L2:12MB)	ALL	0904 GO
Core 2 Quad Q9650(rev.E0,3.00GHz,1333FSB,L2:12MB)	ALL	0410 GO
P4-3.73 GHz Extreme Ed. (1066 FSB, HT, revN0, LGA775)	ALL	0304 GO
P4-520/520J (2.8E GHz) (800 FSB) (D0)	ALL	0304 GO
P4-520/520J (2.8E GHz) (800 FSB) (E0)	ALL	0304 GO
P4-521 (2.8GHz, 800 FSB,HT, L2 1MB)(D0,E0)	ALL	0304 GO
P4-531 (3GHz, 800 FSB, L2 1MB)(D0,E0)	ALL	0304 GO
P4-540/540J (3.2E GHz) (800 FSB) (E0,D0)	ALL	0304 GO
P4-551 (3.4GHz, 800 FSB, L2 1MB,D0,E0)	ALL	0304 GO
P4-551 (3.4GHz, 800 FSB, L2 1MB,G1)	ALL	0304 GO
P4-570 (3.8 GHz) (800 FSB) (E0)	ALL	0304 GO
P4-630 (3.0E GHz, 800 FSB, L2:2MB, EM64T, HT)	ALL	0304 GO
P4-631 (65nm,3.0GHz, 800 FSB, L2:2MB, revB1)	ALL	0304 GO
P4-640 (3.2E GHz, 800 FSB, L2:2MB, EM64T, HT)	ALL	0304 GO
P4-641 (65nm,3.2GHz, 800 FSB, L2:2MB, revB1)	ALL	0304 GO
P4-650 (3.4E GHz, 800 FSB, L2:2MB, EM64T, HT)	ALL	0304 GO
P4-651 (65nm,3.4GHz, 800 FSB, L2:2MB, revB1)	ALL	0304 GO
P4-662 (3.6 GHz, 800 FSB, L2:2MB, EM64T, HT, revR0)	ALL	0304 GO
P4-670 (3.8 GHz, 800 FSB, L2:2MB,N0)	ALL	0304 GO
Pentium D 820 (2.8 GHz, 800 FSB, revA0)	ALL	0304 GO
Pentium D 830 (3.0 GHz, 800 FSB, revA0)	ALL	0304 GO
Pentium D 830 (3.0 GHz, 800 FSB, revB0)	ALL	0304 GO
Pentium D 840 (3.2 GHz, 800 FSB, revA0)	ALL	0304 GO
Pentium D 915(2.8GHz, 800 FSB, L2 4MB, revC1, without VT function)	ALL	0304 GO
Pentium D 920(2.8GHz, 800 FSB, L2 4MB, revB1)	ALL	0304 GO
Pentium D 925(3.0GHz, 800 FSB, L2 4MB, revC1, without VT function)	ALL	0304 GO
Pentium D 925(3.0GHz, 800 FSB, L2 4MB, revD0, without VT function)	ALL	0304 GO
Pentium D 930(3.0GHz, 800 FSB, L2 4MB, revB1)	ALL	0304 GO
Pentium D 935(3.2GHz, 800 FSB, L2 4MB, 95W, revD0)	ALL	0304 GO
Pentium D 940(3.2GHz, 800 FSB, L2 4MB, revB1)	ALL	0304 GO
Pentium D 940(3.2GHz, 800 FSB, L2 4MB, revC1)	ALL	0304 GO
Pentium D 945(3.4GHz, 800 FSB, L2 4MB, revC1, without VT function)	ALL	0304 GO
Pentium D 945(3.4GHz, 800 FSB, L2 4MB, revD0, without VT function)	ALL	0304 GO
Pentium D 960(3.6GHz, 800 FSB, L2 4MB, revD0)	ALL	0304 GO
Pentium Dual Core E2140(1.6GHz, 800FSB, L2 1MB,L2)	ALL	0304 GO
Pentium Dual Core E2140(1.6GHz,800FSB,L2 1MB,M0)	ALL	0304 GO
Pentium Dual Core E2160(1.8GHz,800FSB,L2 1MB,M0)	ALL	0304 GO
Pentium Dual Core E2180(2.0GHz,800FSB,L2 1MB,M0)	ALL	0304 GO
Pentium Dual Core E2200(2.2GHz,800FSB,L2 1MB,M0)	ALL	0304 GO
Pentium Dual Core E2210(2.2GHz,800FSB,L2 1MB,R0)	ALL	1004 GO
Pentium Dual Core E2220(2.4GHz,800FSB,L2 1MB,M0)	ALL	0304 GO
Pentium Dual Core E5000 (3.4GHz,800FSB,L2:2MB,rev.R0)	ALL	1004 GO
Pentium Dual Core E5200 (2.50GHz,800FSB,L2:2MB,rev.M0)	ALL	0410 GO
Pentium Dual Core E5200(2.50GHz,800FSB,L2:2MB,rev.R0)	1.00GA	1001 GO
Pentium Dual Core E5300 (2.60GHz,800FSB,L2:2MB,rev.R0)	ALL	0902 GO
Pentium Dual Core E5400 (2.70GHz,800FSB,L2:2MB,rev.R0)	ALL	0902 GO
Pentium Dual Core E5500 (2.8GHz,800FSB,L2:2MB,rev.R0)	ALL	1004 GO
Pentium Dual Core E5700 (3.0GHz,800FSB,L2:2MB,rev.R0)	ALL	1004 GO
Pentium Dual Core E6300 (2.8GHz,1066FSB,L2:2MB,rev.R0)	ALL	1001 GO
Pentium Dual Core E6500 (2.93GHz,1066FSB,L2:2MB,rev.R0)	1.00G/1.02G	1004 GO
Pentium Dual Core E6500K (2.93GHz,1066FSB,L2:2MB,rev.R0)	1.00G	1004 GO
Pentium Dual Core E6600 (3.06GHz,1066FSB,L2:2MB,rev.R0)	ALL	1004 GO
Pentium Dual Core E6700 (3.2GHz,1066FSB,L2:2MB,rev.R0)	ALL	1004 GO
Pentium Dual Core E6800 (3.3GHz,1066FSB,L2:2MB,rev.R0)	ALL	1004 GO

دانلود درایورها

توضیحات تکمیلی

برند	ایسوس (Asus)
چیپست (Chipset)	اینتل (Intel)
سوکت پردازنده (CPU socket)	LGA 775
درگاه رم	DDR2
گارانتی	1 هفته تضمین سلامت و کارکرد فلش سیستم (کارکرده، سالم و تست شده)
